Compact ROV Equipment

DEEPINFAR introduces a lightweight, user-friendly, and cost-effective micro ROV designed with a vector layout structure that easily resists water flow disturbances, ensuring the ROV's stability. It can be equipped with various sensors for underwater observation, while capable of deploying multiple tools to ensure its wide range of works.

PRODUCT MODEL

Performer M6

Performer M8

MAX 2

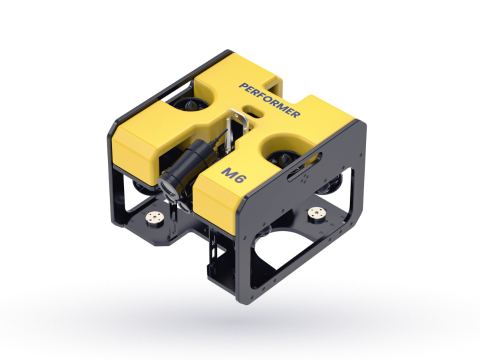

Performer M6

Dimensions

485mm*380mm*295mm

Weight

≈15kg

Maximum depth

150m

Optional Equipment

4K camera
Single/dual function robotic arm
Multi-beam image sonar
Laser measurement systems
Water quality sensors

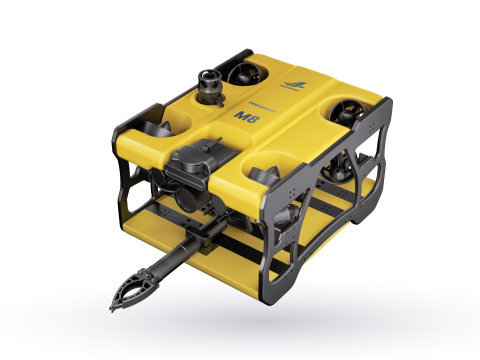

Performer M8

Dimensions

520mm*425mm*320mm

Weight

≈20kg

Maximum depth

150m

Optional Equipment

4K Camera
Single/dual function robotic arm
Multi-beam image sonar
Laser measurement systems
Water quality sensors

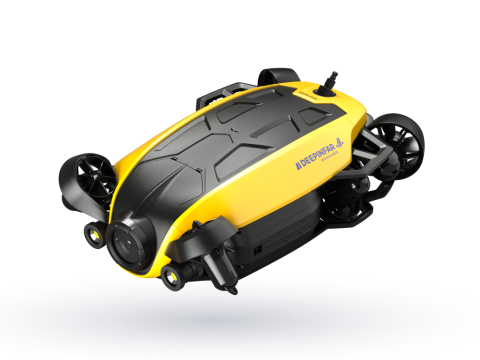

MAX 2

Dimensions

600mm*390mm*225mm

Depth

40m

Weight

10 kg

Camera System

4K/25fps video
12 Million Pixel Photos
1080p/120fps Slow Motion Photography
130° Field of View

Battery Life

240 mins

Battery

196（98*2）Wh

Speed

4 kn

Motion Dimension

Control Mode

Self-Coordinate Mode, Intelligent Mode
