Deep-sea Underwater Camera Deep sea underwater lights Deep sea underwater platform Compensators

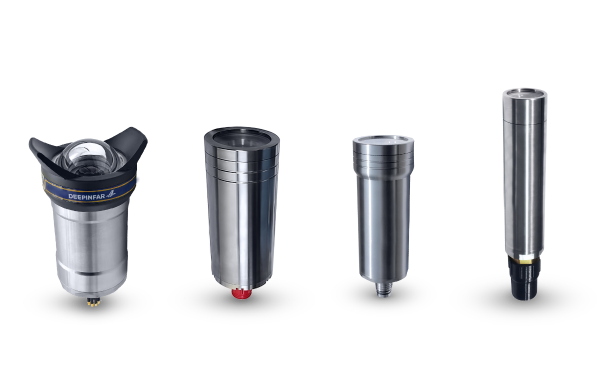

Deep-sea Underwater Camera

Deep Sea series underwater camera is a high quality underwater camera for deep sea observation, with multiple signal interfaces, fixed focus/zoom/wide-angle styles to choose from, and underwater laser cursors for use with the camera. Professional customized technical services are available.

Underwater Fixed-Focus Camera

Underwater low-light camera

Underwater Zoom Camera

Model	CAM623	CAM653
Video Signal	CVBS	HD-SDI
Video Resolution	960H（960×576 PAL）	1920×1080 30fps（Adjustable Settings）
CMOS	1/2.8inch CMOS	1/2.8inch CMOS
Lens Focal Length	3.6mm	3.6mm
Minimum Illumination	0.02Lux@F1.2	0.02Lux@F1.2
Viewing Angle in Water	H58°×V32°×D64°	H58°×V32°×D64°
Maximum Depth	6000m	6000m
Working Temperature	-10 ~ 50°C	-10 ~ 50°C
Weight (in air)	0.53kg	0.53kg
Weight (in water)	0.39kg	0.39kg
Power Supply	9~28VDC（≤2W）	9~28VDC（≤2W）
Electrical Interface	■BR19T5 □75CXBH6M □Customizable	■BR19T5 □75CXBH6M □Customizable

Model	CAM624	CAM654
Video Signal	CVBS	HD-SDI
Video Resolution	960H（960×576 PAL）	1920×1080 60fps（Adjustable Settings）
CMOS	1/2.8inch CMOS	1/2.8inch CMOS
Lens Focal Length	3.6mm	3.6mm
Minimum Illumination	0.02Lux@F1.2	0.02Lux@F1.2
Viewing Angle in Water	H58°×V32°×D64°	H58°×V32°×D64°
Maximum Depth	6000m	6000m
Working Temperature	-10 ~ 50°C	-10 ~ 50°C
Weight (in air )	2.4kg	2.4kg
Weight (in water )	1.6kg	1.6kg
Power Supply	9~36VDC	9~36VDC
Power	Maximum 2W	Maximum 2W
Electrical Interface	■BR19T5 □75CXBH6M □Customizable	■BR19T5 □75CXBH6M □Customizable

Model	CAM682
Video Resolution	1920×1080
CMOS	1/2.8in CMOS
Minimum Illumination	0.01Lux@F1.2
Lens Focal Length	■2.8mm □3.6mm □6mm
Viewing Angle in Water	H64°×V35°×D70°（f=2.8mm）
Video Compression Format	H.265
Video Frame Rate	Maximum 25fps, Adjustable Settings
Maximum Depth	6000m
Weight (in air)	0.33kg
Weight (in water)	0.23kg
Power Supply	9~28VDC
Power	No more than 2W, typical value 1.3W
Working Temperature	-10 ~ 50°C
Electrical Interface	■MCBH8M □DBH8M □Customizable

Model	CAM685	CAM685Q	CAM685Z
Video Resolution	1920×1080	1920×1080	1920×1080
Video Frame Rate	Max 60fps, adjustable settings	Max 60fps, adjustable settings	Max 60fps, adjustable settings
CMOS	1/1.8in CMOS	1/1.8in CMOS	1/1.8in CMOS
Minimum Illumination	0.005Lux@F1.2	0.005Lux@F1.2	0.005Lux@F1.2
Lens Focal Length	2.8mm	2.8mm	3.6-11mm
Viewing Angle in Water	H74°×V42°×D80°	H100°×V54°×D104°	H66°×V40°×D74°
Maximum Depth	6000m	6000m	6000m
Weight (in air)	1.12kg	1.05kg	1.26kg
Weight (in water)	0.62kg	0.56kg	0.75kg
Power Supply	9~36VDC	9~36VDC	9~36VDC
Power	Max 4W	Max 4W	Max 8W
Video Compression Format	H.265	H.265	H.265
Working Temperature	-10 ~ 50°C	-10 ~ 50°C	-10 ~ 50°C
Electrical Interface	■MCBH8M □DBH8M □Customizable	■MCBH8M □DBH8M □Customizable	■MCBH8M □DBH8M □Customizable

Model	CAM686	CAM686Q	CAM686Z
Video Resolution	3840×2160	3840×2160	3840×2160
Video Frame Rate	Max 30fps, adjustable settings	Max 30fps, adjustable settings	Max 30fps, adjustable settings
CMOS	1/1.8in CMOS	1/1.8in CMOS	1/1.8in CMOS
Minimum Illumination	0.005Lux@F1.2	0.005Lux@F1.2	0.005Lux@F1.2
Lens Focal Length	2.8mm	2.8mm	3.6-11mm
Viewing Angle in Water	H74°×V42°×D80°	H100°×V54°×D104°	H66°×V40°×D74°
Maximum Depth	6000m	6000m	6000m
Weight (in air)	1.12kg	1.05kg	1.26kg
Weight (in water)	0.62kg	0.56kg	0.75kg
Power Supply	9~36VDC	9~36VDC	9~36VDC
power	Max 4W	Max 4W	Max 8W
Video Compression Format	H.265	H.265	H.265
Working Temperature	-10 ~ 50°C	-10 ~ 50°C	-10 ~ 50°C
Electrical Interface	■MCBH8M □DBH8M □Customizable	■MCBH8M □DBH8M □Customizable	■MCBH8M □DBH8M □Customizable

Model	CAM688W
Video Resolution	1920×1080
CMOS	1/2.8inch CMOS
Minimum Illumination	0.0001Lux@F1.4
Video Color	Black and white
Lens Focal Length	3.6mm
Viewing Angle in Water	H52°×V32°×D59°
Power Supply	12-36VDC
Power	Max 2W
Video Compression Format	H.264
Video Frame Rate	30fps
Maximum Depth	6000m
Weight (in air)	1.97kg
Weight (in water)	1.30kg
Working Temperature	0 ~ 50°C
Electrical Interface	■DBH8M □DBH13M □BR13W2

Model	CAM671Z
Video Resolution	1920×1080
CMOS	1/2.8in CMOS
Minimum Illumination	0.1Lux@F1.2
Lens Focal Length	10 （F=3.8mm~38mm）
Viewing Angle in Water	H52°×V32°×D58°
Power Supply	9~36VDC
Power	Max 5W
Video Compression Format	H.264
Video Frame Rate	Max 60fps, adjustable settings
Maximum Depth	6000m
Weight (in air)	2.8kg
Weight (in water)	1.6kg
Working Temperature	-10 ~ 50°C
Electrical Interface	■DBH13M □Customizable

Model	CAM673Z
Video Resolution	1920×1080
CMOS	1/2.8in CMOS
Minimum Illumination	0.1Lux@F1.2
Lens Focal Length	30 （F=4.3mm~129mm）
Viewing Angle in Water	H48°×V28°×D54°
Power Supply	9~36VDC
Power	最大6W
Video Compression Format	H.264
Video Frame Rate	Max 60fps, adjustable settings
Maximum Depth	6000m
Weight (in air)	4.2kg
Weight (in water)	3.1kg
Working Temperature	-10 ~ 50°C
Electrical Interface	■DBH13M □Customizable

Model	CAM674Z
Video Resolution	3840×2160
CMOS	1/2.5in CMOS
Minimum Illumination	0.4Lux@F1.2
Lens Focal Length	20 （F=4.4mm~88.4mm）
Viewing Angle in Water	H48°×V28°×D54°
Power Supply	9~36VDC
Power	Max 6W
Video Compression Format	H.264
Video Frame Rate	Max 30fps, adjustable settings
Maximum Depth	6000m
Weight (in air)	4.2kg
Weight (in water)	3.1kg
Working Temperature	-10 ~ 50°C
Electrical Interface	■DBH13M □Customizable

Model	LAR30	LAR50	LAR100	LAR150	LAR200
Laser Power	30mW	50mW	100mW	150mW	200mW
Laser Color	■Red □Green	■Red □Green	■Red □Green	■Red □Green	■Red □Green
Cursor Shape	■Dot □Line □Cross	■Dot □Line □Cross	■Dot □Line □Cross	■Dot □Line □Cross	■Dot □Line □Cross
Maximum Depth	6000m	6000m	6000m	6000m	6000m
Power Supply	9~28VDC	9~28VDC	9~28VDC	9~28VDC	9~28VDC
Power	Max 2W	Max 2W	Max 2W	Max 2W	Max 2W
Weight (in air)	0.26kg	0.26kg	0.26kg	0.26kg	0.26kg
Weight (in water)	0.19kg	0.19kg	0.19kg	0.19kg	0.19kg
Working Temperature	-10 ~ 50°C	-10 ~ 50°C	-10 ~ 50°C	-10 ~ 50°C	-10 ~ 50°C
Electrical Interface	■MCBH3M □BH3M □MCBH4M □BH4M □Customizable	■MCBH3M □BH3M □MCBH4M □BH4M □Customizable	■MCBH3M □BH3M □MCBH4M □BH4M □Customizable	■MCBH3M □BH3M □MCBH4M □BH4M □Customizable	■MCBH3M □BH3M □MCBH4M □BH4M □Customizable

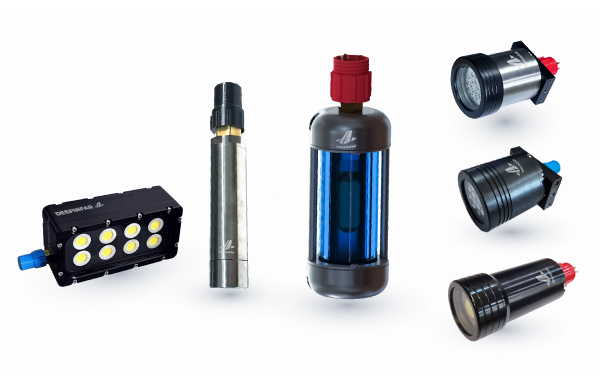

Deep sea underwater lights

The deep sea series underwater lights are high-quality underwater lighting products for deep sea observation operations. The product range includes high voltage, low voltage, AC, DC power supplies, and has multiple dimming interfaces such as serial dimming, analog dimming, PWM duty cycle dimming, etc. The team has independent research and development capabilities and can provide professional customized technical services.

Model

Halogen underwater light

Model	LAMP30K6	LAMP30K05
Weight (in air)	0.57kg	0.5kg
Weight (in water)	0.29kg	0.25kg
Power	□20w ■30w	□20w ■30w
Color Temperature	□3500K □4500K ■6000K	□3500K □4500K ■6000K
Shell material	■6061-T6 Aluminum Alloy □Customize	■6061-T6 Aluminum Alloy □Customize
Maximum Depth	6000m	500m
luminance	□2000lm@20w ■3000lm@30w	□2000lm@20w ■3000lm@30w
Working Temperature	-20~30℃	-20~30℃
Low Voltage Power Supply	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming
High Voltage Power Supply	■ 110/220VAC ■ 150/300VDC Fixed light brightness	■ 110/220VAC ■ 150/300VDC Fixed light brightness

Model	LAMP50K6	LAMP50K05
Weight (in air)	0.85kg	0.71kg
Weight (in water)	0.46kg	0.36kg
Power	50w	50w
Color Temperature	□3500K □4500K ■6000K	□3500K □4500K ■6000K
Shell Material	■6061-T6 Aluminum Alloy □Customize	■6061-T6 Aluminum Alloy □Customize
Maximum Depth	6000m	500m
luminance	5000lm	5000lm
Working Temperature	-20~30℃	-20~30℃
Low Voltage Power Supply	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming
High Voltage Power Supply	■ 110/220VAC ■ 150/300VDC Fixed light brightness	■ 110/220VAC ■ 150/300VDC Fixed light brightness

Model	LAMP100K6	LAMP100K05
Weight (in air)	2.2kg	1.65kg
Weight (in water)	1.05kg	0.75kg
Power	100w	100w
Color Temperature	□3500K □4500K ■6000K	□3500K □4500K ■6000K
Shell Material	■7075-T6Aluminum Alloy □Customize	■7075-T6Aluminum Alloy □Customize
Maximum Depth	6000m	500m
luminance	10000lm	10000lm
Working Temperature	-20~30℃	-20~30℃
Low Voltage Power Supply	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming
High Voltage Power Supply	■ 110/220VAC ■ 150/300VDC Optional: Dimming / Non-dimming	■ 110/220VAC ■ 150/300VDC Optional: Dimming / Non-dimming

Model	LAMP300K6	LAMP300K05
Weight (in air)	5.2kg	3.9kg
Weight (in water)	3.1kg	1.9kg
Power	300w	300w
Color Temperature	□3500K □4500K ■6000K	□3500K □4500K ■6000K
Shell Material	■7075-T6 Aluminum Alloy □Customize	■7075-T6 Aluminum Alloy □Customize
Maximum Depth	6000m	500m
luminance	30000lm	30000lm
Working Temperature	-20~30℃	-20~30℃
Low Voltage Power Supply	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming
High Voltage Power Supply	■ 110/220VAC ■ 150/300VDC Optional: Dimming / Non-dimming	■ 110/220VAC ■ 150/300VDC Optional: Dimming / Non-dimming

Model	LAMP76K6	LAMP76K11
Weight (in air)	0.92kg	1.6kg
Weight (in water)	0.46kg	1.2kg
Power	60w	60w
Color Temperature	3500K~6000K	3500K~6000K
Shell Material	6061-T6 Aluminum Alloy	TC4 Titanium Alloy
Maximum Depth	6000m	11000m
luminance	6000lm	6000lm
Working Temperature	-20~30℃	-20~30℃
Low Voltage Power Supply	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming	■ 24VDC ■ 48VDC Optional: Dimming / Non-dimming

Model	LAMPX1K3
Power	□150W ■200W □300W
Voltage	□24VDC □110VAC ■220VAC
Electrical Interface	Socket：BH3M
Weight (in air)	2.9kg
Weight (in water)	1.7kg
Maximum Depth	3000m
Shell Material	6061-T6 Aluminum Alloy
Working Temperature	-20~30℃

Model	LAMPX2K6
Power	□150W ■200W □300W
Voltage	□24VDC □110VAC ■220VAC
Electrical Interface	Socket：BH3M
Weight (in air)	1.1kg
Weight (in water)	0.7kg
Maximum Depth	6000m
Shell Material	6061-T6 Aluminum Alloy
Working Temperature	-20~30℃

Deep sea underwater platform

The deep sea series underwater gimbal is used to carry underwater lights and video cameras, adjust the viewing direction of underwater cameras, and expand the underwater camera range. The gimbal can also carry underwater equipment such as sonar and cameras to expand the range of action. The underwater gimbal is driven by a motor and a harmonic reducer. The gimbal moves quietly and accurately, with an execution accuracy better than 0.1 degrees.

Dual-degree-of-freedom electric pan/tilt

Single degree of freedom electric pan/tilt

Model	P16
Power	50W（Maximum power of dual-axis operation）
Maximum Torque	16Nm(Dual axis same)
Load Weight	8kg
Execution Accuracy	Better than 0.1°(Dual axis same)
Maximum Angular Velocity	10°/s(Dual axis same)
Pitch Angle	±90°
Swing Angle	■ ±90° □ ±180°
Casing Material	Titanium Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/8
Weight (in air)	4.5kg
Weight (in water)	3.4kg
Electrical Interface	Subconn MCBH6M(Customizable)

Model	P25
Power	60W（Maximum power of dual-axis operation）
Maximum Torque	25Nm(Dual axis same)
Load Weight	15kg
Execution Accuracy	Better than 0.1°(Dual axis same)
Maximum Angular Velocity	10°/s(Dual axis same)
Pitch Angle	±90°
Swing Angle	■ ±90° □ ±180°
Casing Material	6061-T6 Aluminum Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/8
Weight (in air)	8kg
Weight (in water)	5.9kg
Electrical Interface	Subconn MCBH6M(Customizable)

Model	P25T
Power	60W（Maximum power of dual-axis operation）
Maximum Torque	25Nm(Dual axis same)
Load Weight	15kg
Execution Accuracy	Better than 0.1°(Dual axis same)
Maximum Angular Velocity	10°/s(Dual axis same)
Pitch Angle	±90°
Swing Angle	■ ±90° □ ±180°
Casing Material	Titanium Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/8
Weight (in air)	7.2kg
Weight (in water)	5.2kg
Electrical Interface	Subconn MCBH6M(Customizable)

Model	P50
Power	80W（Maximum power of dual-axis operation）
Maximum Torque	50Nm(Dual axis same)
Load Weight	30kg
Execution Accuracy	Better than 0.1°(Dual axis same)
Maximum Angular Velocity	10°/s(Dual axis same)
Pitch Angle	±90°
Swing Angle	■ ±90° □ ±180°
Casing Material	6061-T6 Aluminum Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/4
Weight (in air)	12.2kg
Weight (in water)	8.7kg
Electrical Interface	Subconn BH6M(Customizable)

Model	P25D
Power	30W
Maximum Torque	25Nm
Load Weight	10kg
Execution Accuracy	Better than 0.1°
Maximum Angular Velocity	10°/s
Rotation Angle Range	■ 0~180° □ 0~360°
Casing Material	6061-T6 Aluminum Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/8
Weight (in air)	4kg
Weight (in water)	3kg
Electrical Interface	Subconn MCBH6M(Customizable)

Model	P50D1
Power	40W
Maximum Torque	50Nm
Load weight	20kg
Execution Accuracy	Better than 0.1°
Maximum Angular Velocity	10°/s
Rotation Angle Range	■ 0~180° □ 0~360°
Casing Material	6061-T6 Aluminum Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/4
Weight (in air)	5.6kg
Weight (in water)	3.8kg
Electrical Interface	Subconn BH6M(Customizable)

Model	P50D2
Power	40W
Maximum Torque	50Nm
Load Weight	30kg
Execution Accuracy	Better than 0.1°
Maximum Angular Velocity	10°/s
Rotation Angle Range	■ 0~180° □ 0~360°
Casing Material	6061-T6 Aluminum Alloy
Maximum Depth	6000m
Working Temperature	-10 ~ 30°C
Compensation	Oil-filled compensation, interface G1/4
Weight (in air)	5.9kg
Weight (in water)	3.9kg
Electrical Interface	Subconn BH6M(Customizable)

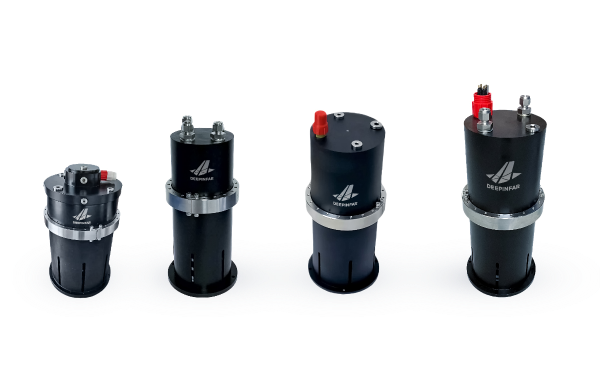

Compensators

Model

Model	CMP100A	CMP100S
Maximum Depth	6000m6000m	6000m6000m
Volume	100ml	100ml
Compensation Pressure	Positive pressure compensation, pressure ≤ 0.5 bar	Positive pressure compensation, pressure ≤ 0.5 bar
Shell Material	6061-T6 Aluminum Alloy	316 Stainless Steel
Connector	6mm card sleeve light tube	6mm card sleeve light tube
Weight	0.42kg（Oil-free）	0.32kg（Oil-free）

Model	CMP1000N
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	1L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	none
Aluminum Alloy Weight（in air）	3.2kg（Oil-free）
Aluminum Alloy Weight（in water）	2.2kg（Oil-free）
Non-metallic Weight（in air）	2.2kg（Oil-free）
Non-metallic Weight（in water）	1.2kg（Oil-free）
Compensation Interface	3 G3/8 ports

Model	CMP1000C
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	1L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	Resistance signal feedback: 1kΩ~4.7kΩ Current signal feedback: 4~20mA Voltage signal feedback: 1~5V Serial signal feedback: Rs485
Aluminum Alloy Weight（in air）	3.6kg（Oil-free）
Aluminum Alloy Weight（in water）	2.2kg（Oil-free）
Non-metallic Weight（in air）	2.5kg（Oil-free）
Non-metallic Weight（in water）	1.1kg（Oil-free）
Compensation Interface	2 G3/8 ports

Model	CMP1700N
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	1.7L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	none
Aluminum Alloy Weight（in air）	5.4kg（Oil-free）
Aluminum Alloy Weight（in water）	3.7kg（Oil-free）
Non-metallic Weight（in air）	3.7kg（Oil-free）
Non-metallic Weight（in water）	2.0kg（Oil-free）
Compensation Interface	3 G3/8 ports

Model	CMP1700C
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	1.7L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	Resistance signal feedback: 1kΩ~4.8kΩ Current signal feedback: 4~20mA Voltage signal feedback: 1~5V Serial port signal feedback: Rs485
Aluminum Alloy Weight（in air）	6.1kg（Oil-free）
Aluminum Alloy Weight（in water）	4.0kg（Oil-free）
Non-metallic Weight（in air）	4.1kg（Oil-free）
Non-metallic Weight（in water）	2.0kg（Oil-free）
Compensation Interface	2 G3/8 ports

Model	CMP2000N
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	2L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	none
Aluminum Alloy Weight（in air）	5.6kg（Oil-free）
Aluminum Alloy Weight（in water）	3.8kg（Oil-free）
Non-metallic Weight（in air）	3.8kg（Oil-free）
Non-metallic Weight（in water）	2.0kg（Oil-free）
Compensation Interface	3 G3/8 ports

Model	CMP2000C
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	2L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	Resistance signal feedback: 1kΩ~5.5kΩ Current signal feedback: 4~20mA Voltage signal feedback: 1~5V Serial port signal feedback: Rs485
Aluminum Alloy Weight（in air）	6.3kg（Oil-free）
Aluminum Alloy Weight（in water）	4.0kg（Oil-free）
Non-metallic Weight（in air）	4.2kg（Oil-free）
Non-metallic Weight（in water）	1.9kg（Oil-free）
Compensation Interface	2 G3/8 ports

Model	CMP5000
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	5L
Compensation Pressure	约0.25-0.5bar
Liquid Level Feedback	Resistance signal feedback: 1kΩ~5.2kΩ Current signal feedback: 4~20mA Voltage signal feedback: 1~5V Serial signal feedback: Rs485
Aluminum Alloy Weight（in air）	17.9kg（Oil-free）
Aluminum Alloy Weight（in water）	11.8kg（Oil-free）
Non-metallic Weight（in air）	11.8kg（Oil-free）
Non-metallic Weight（in water）	5.7kg（Oil-free）
Compensation Interface	4 G3/8 ports, 3 G3/4 ports

Model	CMP10000
Maximum Depth	Non-metallic model 6000m/Metallic model 11000m
Volume	10L
Compensation Pressure	≈0.25-0.5bar
Liquid Level Feedback	Resistance signal feedback: 1kΩ~4.5kΩ Current signal feedback: 4~20mA Voltage signal feedback: 1~5V Serial port signal feedback: Rs485
Aluminum Alloy Weight（in air）	30.4kg（Oil-free）
Aluminum Alloy Weight（in water）	20.1kg（Oil-free）
Non-metallic Weight（in air）	20.0kg（Oil-free）
Non-metallic Weight（in water）	9.7kg（Oil-free）
Compensation Interface	4 G3/8 ports, 3 G3/4 ports
